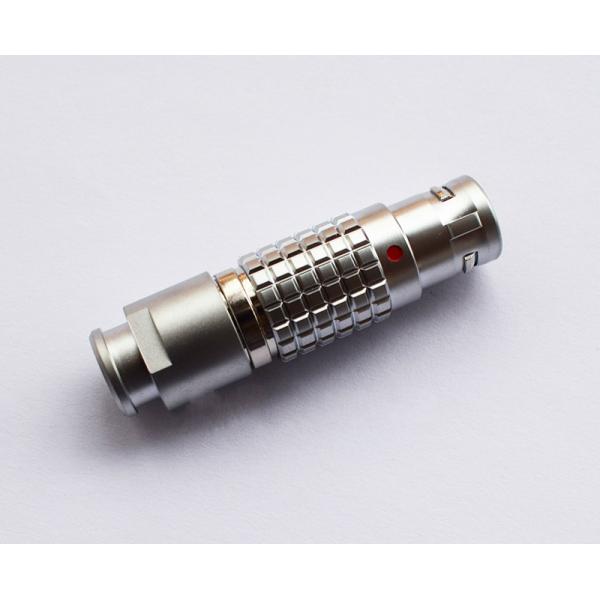

Lemo Plug 4 pins connector metal circular male adpator cross LEMO 0B series FGG.0B.304

Lemo Plug 4 pins connector metal circular male adpator cross LEMO 0B series FGG.0B.304

• The rapid push-pull locking system;
• Welding, crimping and PCB-core-type connectors;
• Straight, 90 ° corners of;
• Minutes pin can choose to avoid the use of a machine similar to the connector between the mixed interpolations;
• The right direction shielding effect, anti-electromagnetic interference;
• Series of multi-core, high-density installation space-saving;
• Pin system, G pin as the standard for on-connector.

• Endurance: > 5000 mating cycles;
• Humidity: up to 95% at 60 degree;
• emperature range: -45, +125 ;
• Resistance to vibration: 15 g[10 HZ-2000HZ];
• Shock resistance: 100 g, 6 MS;
• Salt spray corrosion test: > 48h;
• Protection index (mated): IP50.

• Shell made of copper alloy, stainless steel is used in special occasions, plated with Nickel or Chrome;
• Pin and jack made of copper alloy, plated with gold;
• Insulator molded with engineering plastic which is high-temperature endurable and good insulating;
• Sleeve molded with soft plastic to protect cables.
• Industry Application: It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications product line.

​
